Zeiss 8x30

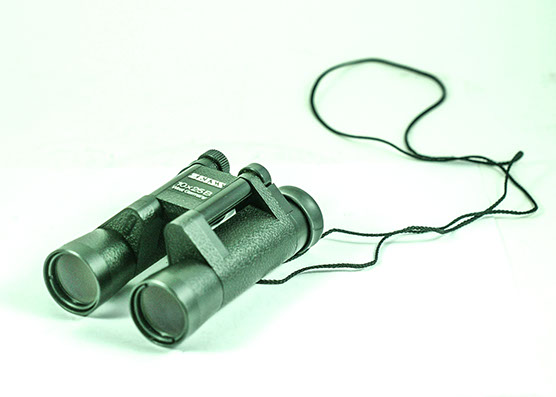

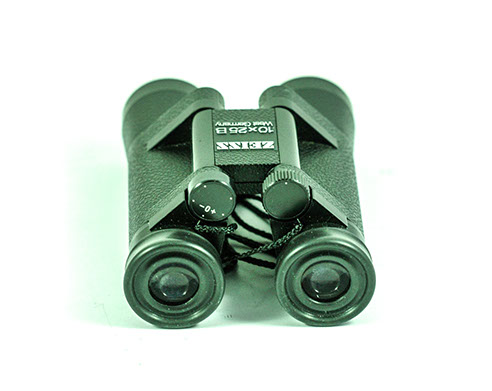

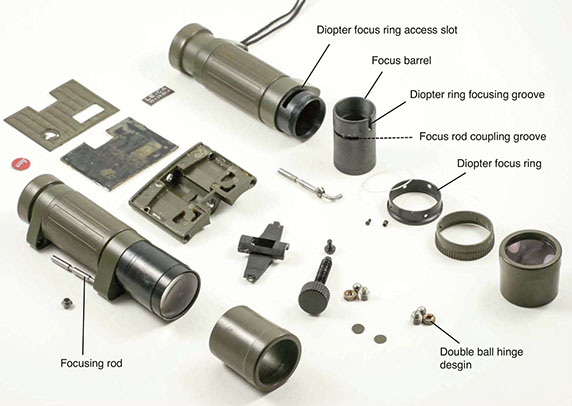

These are extremely light/compact binoculars perhaps designed to fit inside a woman's purse. The design is unique in that the eye distance is achieved by double hinge design. A single hinge can not extend far enough form a compact to wide open to the human eye distance. This makes the design challenging but as optomechanics dictates a variety of options, the most user friendly Zeiss has come up with is to place the diopter adjustment behind one hinge, and the focusing knob on the other. I have disassembled a similar design (Leica) with similar optomechanical layout. In Leica, the designer decided to place both knobs on the right hinge, one in front, and one on the back.

Related

Article in

Optomex

See the full story on binoculars,

Oct-Dec 2020 issue of Optomechanix:

Needs Special Tools
